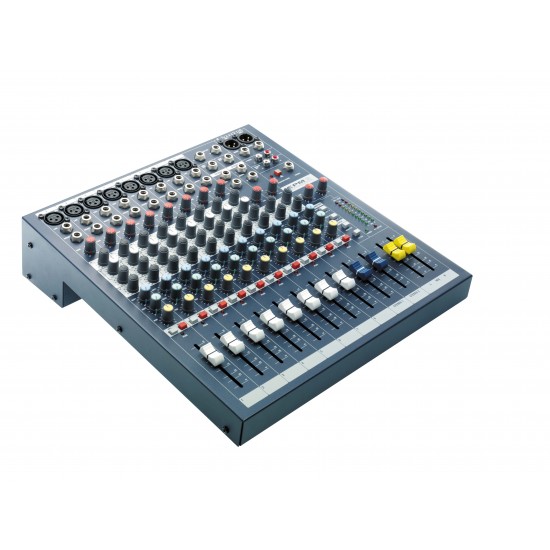

Soundcraft EPM 8CH CONSOLE UK

Soundcraft EPM 8CH CONSOLE UK
Soundcraft EPM 8CH CONSOLE UK
Soundcraft EPM 8CH CONSOLE UK
Out Of Stock
Soundcraft EPM 8CH CONSOLE UK
Soundcraft EPM 8CH CONSOLE UK
Soundcraft EPM 8CH CONSOLE UK

Soundcraft EPM 8CH CONSOLE UK

AED 1,648
  • Stock: Out Of Stock
  • Model: EPM 8

The emphasis with the Soundcraft EPM RW5735UK is very firmly on quality build and audio performance, with an easy to understand control surface uncluttered by unnecessary facilities, and Soundcraft have brought new technologies and ideas to this very cost-effective range. Surface mount technology is used throughout, using close-tolerance components for high accuracy and repeatable settings for EQ and gain controls. The highly-transparent GB30 Mic amp (designed by Graham Blyth for the company’s 30th anniversary, and also used on the larger LX7ii and GB Series consoles) features high-resolution adjustment over a wide gain range of 55dB, and provides a stunning +22dB headroom through the console. True professional 48-volt phantom power caters for condenser microphones of all types. The Soundcraft EPM will find itself in many applications including live music, recording, houses of worship and multi-speaker installations.

Features

  • 2 configurable auxiliary buses
  • XLR-type and ¼” metal jack connector sockets
  • RCA phono stereo playback inputs and record outputs
  • 3-band EQ with a swept mid on mono inputs
  • 2-band EQ on stereo inputs
  • TRS insert sockets and inserts on all mono inputs and mix output
  • Ten-segment LED output metering
  • Intuitive and comprehensive solo system
  • Headphone output
  • Easily rack mountable
Live Sound Mixers(Digital/ Analog/ Powered/ Line)
Type Stereo Audio Console
Channels 8 Mono & 2 Stereo Input Channels
Faders 100 mm Faders
Inputs - Mic preamps 8x Line Mono: 1/4" TRS Phone 2x Line Stereo: L/R 1/4" TRS Phone 8x Microphone: 3-pin XLR
Phantom Power +48 V Phantom
Outputs - Main 1/4" TRS Phone - Mono Inputs, Main Stereo Output
Outputs - Direct Monitor: L/R Stereo Paired 1/4" TRS Phone
Outputs - Others BUS (Group) Outputs Stereo Output Only 2 Trk Master I/O Mix L/R: Stereo Paired L/R RCA Phono
AUX Sends 2x Aux Sends
EQ Bands Mono Inputs +/- 15 dB Lo: 80 Hz Mid: 150 Hz - 3.5 kHz (swept) Hi: 12 kHz Q: 1.5 Stereo Inputs +/-15 dB Lo: 80 Hz Mid: 720 Hz Hi: 12 kHz
Height 90.5
Width 330
Depth 362 mm
Weight 15.87 lb (7.2 kg)
Manufacturer Part Number RW5735UK
