A solid foundation for mixing.

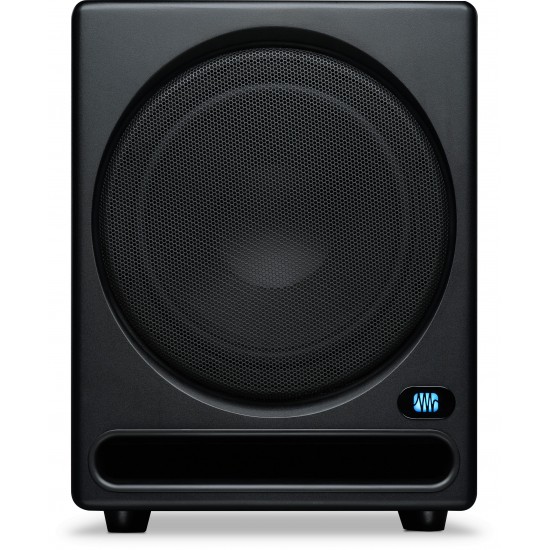

Powerful and musical, Temblor T10 active, front-firing subwoofers are designed to deliver fast and accurate transient response, extending low frequencies without a hint of “tubbiness” or overshoot. This ensures that Temblor-series subwoofers complement full-range monitors without overshadowing them, naturally extending the reach of your full-range system’s low end so that you can produce your best mix from top to bottom.

Temblor 10 Features

Main components

• 10-inch, front-firing, glass-composite low-frequency transducer
• Front-firing, bass-reflex acoustic port

Controls and filters

• Input gain control (-30 dB to +6 dB, continuously variable)
• Continuously variable lowpass filter (50 Hz to 130 Hz)
• Built-in crossover
• Switchable highpass filter removes frequency content below 80 Hz from the full-range signal sent from the Temblor outputs to the main monitors
• Momentary footswitch (included) bypasses the subwoofer, highpass filter, and Sub Out
• Polarity invert
• Ground-lift switch

Power and safety

• 250 watt, Class AB amplification
• Internal damping and heat sink
• Integrated rubber feet for stable placement

Inputs and outputs

• Left and right, balanced XLR and ¼” TRS and unbalanced RCA main inputs
• Left and right balanced XLR and ¼” TRS outputs
• XLR subwoofer output for connecting a second Temblor^® T10
