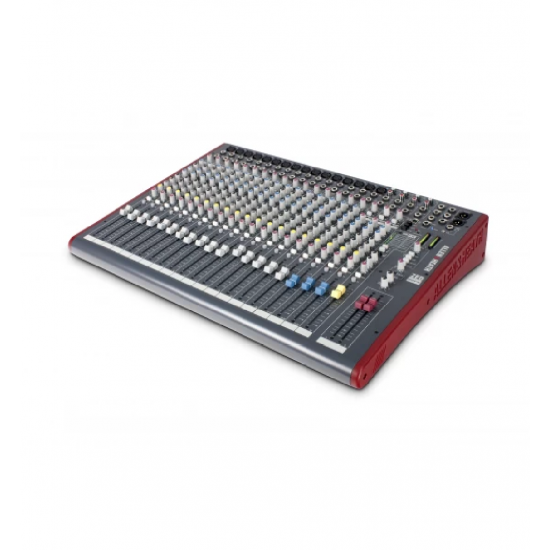

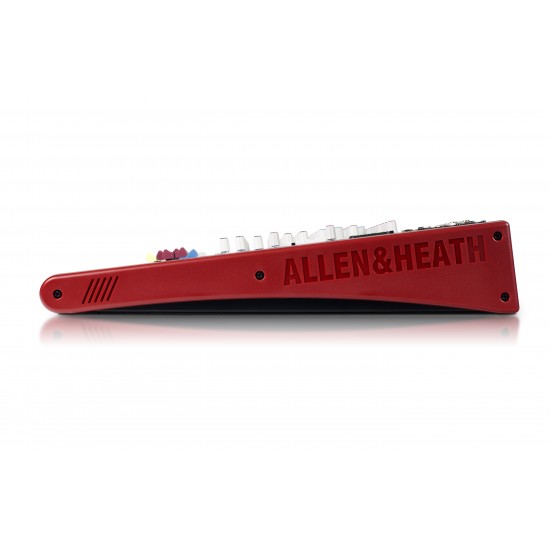

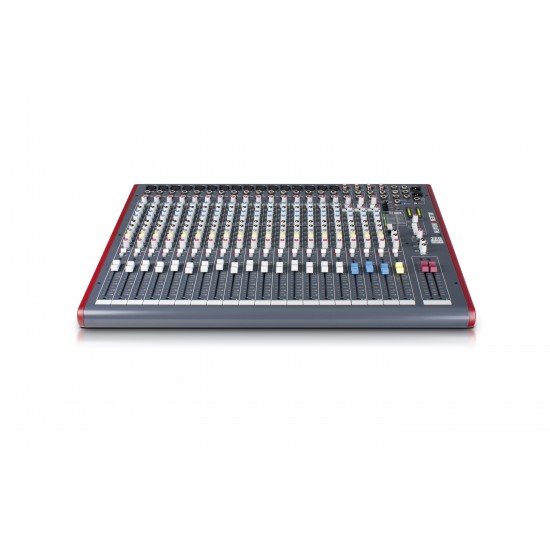

Allen & Heath ZED22FX 22-CH Analog Mixer with USB and Built-In Built-In FX

Allen & Heath ZED22FX 22-CH Analog Mixer with USB and Built-In Built-In FX
Allen & Heath ZED22FX 22-CH Analog Mixer with USB and Built-In Built-In FX
Allen & Heath ZED22FX 22-CH Analog Mixer with USB and Built-In Built-In FX
Allen & Heath ZED22FX 22-CH Analog Mixer with USB and Built-In Built-In FX
Allen & Heath ZED22FX 22-CH Analog Mixer with USB and Built-In Built-In FX
Allen & Heath ZED22FX 22-CH Analog Mixer with USB and Built-In Built-In FX
Allen & Heath ZED22FX 22-CH Analog Mixer with USB and Built-In Built-In FX
Allen & Heath ZED22FX 22-CH Analog Mixer with USB and Built-In Built-In FX
Allen & Heath ZED22FX 22-CH Analog Mixer with USB and Built-In Built-In FX
Allen & Heath ZED22FX 22-CH Analog Mixer with USB and Built-In Built-In FX

Allen & Heath ZED22FX 22-CH Analog Mixer with USB and Built-In Built-In FX

AED 4,044
  • Stock: In Stock
  • Model: ZED22FX

22-CH Analog Mixer with USB and Built-In Built-In FX is a solid mixer with great effects! The ZED-22 FX is the perfect center to your live rig — and it's also ready to rock in the studio. First of all, the Allen & Heath ZED-22 FX gives you all the connections you need to hook up a small band, duo, or solo performer. Thanks to the 16 mic/line channels you can connect all the mics and DI boxes you need. Plus you've got three dual stereo channels available, each with a gain and 2-band EQ control. The FX in the name, though, is what takes the cake. Here, you can get tweaky with 16 separate effects for nailing the perfect, polished live sound with the ZED-22FX. The record-ready Allen & Heath ZED-22 FX will be the centerpiece to your live sound rig!

FEATURES

  • 22-channel mixer with 16 mic/line inputs and three dual stereo channels
  • USB audio connection for immediate recording
  • Feature four aux sends, 1 and 2 are pre-fade, 3 and 4 are post-fade
  • High-quality DuoPre microphone preamplifiers with huge 69dB gain range
  • Musical 3-band EQ on 16 main channels, 2-band EQ on the stereo channels
  • Three switches for varying your send/return configurations for recording
  • 16 built-in effects, including delays, reverbs, flange, and chorus
Live Sound Mixers(Digital/ Analog/ Powered/ Line)
Type Analog
Channels 22
Computer Connectivity USB (2 x 2)
Faders 22 x 100mm
Inputs - Mic preamps 16 x XLR
Phantom Power 16
Inputs - Line 6 x TRS (CH 1-6), 6 x TRS (CH 17-22 Stereo)
Outputs - Main 2 x XLR (Main), 1 x TRS (Mono)
Outputs - Others 2 x RCA (Alt), 2 x RCA (Rec)
AUX Sends 2 x Pre, 1 x Post, 1 x Post/FX
USB 1 x Type B
EQ Bands 3-band, Sweepable Mid (CH 1-16), 2-band (CH 17-22 Stereo)
Effects Yes
Height 3.9"
Width 25.4"
Depth 18.3"
Weight 23.1 lbs.
Manufacturer Part Number AH-ZED22FX
