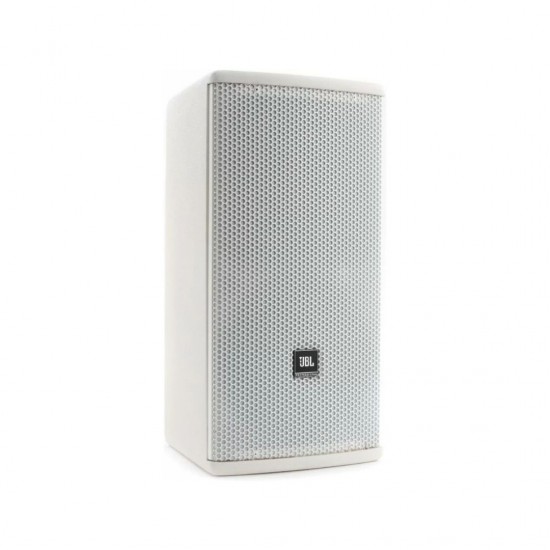

JBL AM7315/95-WH High Power 3-Way Loudspeaker White

JBL AM7315/95-WH  High Power 3-Way Loudspeaker White
Out Of Stock

JBL AM7315/95-WH High Power 3-Way Loudspeaker White

AED 20,597
  • Stock: Out Of Stock
  • Model: AM7315/95-WH

AM7315 speakers are high power 3-way full-range loudspeaker systems comprised of one 380 mm (15 in) Differential Drive® low frequency driver, one 200 mm (8 in) CMCD Cone Midrange Compression Driver, and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Pre-engineered array bracketry is available. AM7315 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

FEATURES:

  • 2265H Differential Drive® Low-Frequency Driver
  • CMCD™ Cone Midrange Compression Driver provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherency.
  • 2432H High-Frequency Compression Driver
  • PT™ Progressive Transition Waveguide for excellent pattern control with low distortion.
  • Bi-Amp/Tri-Amp Switchable.
