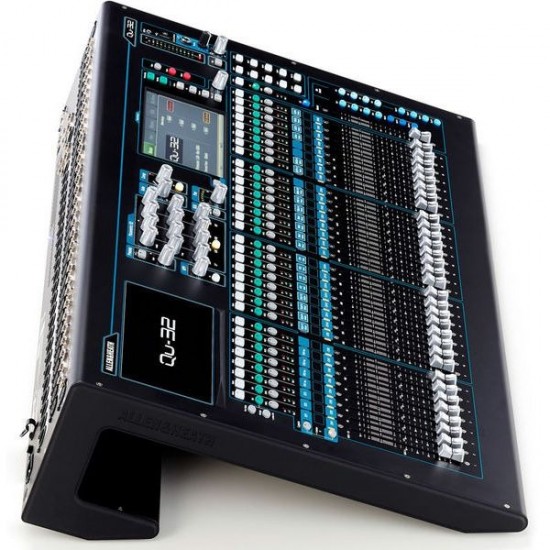

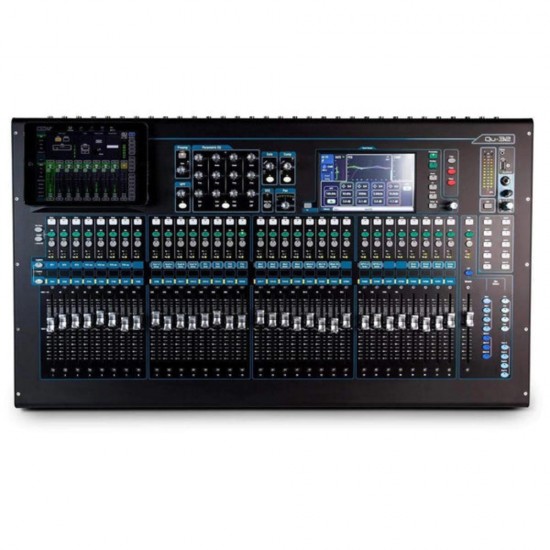

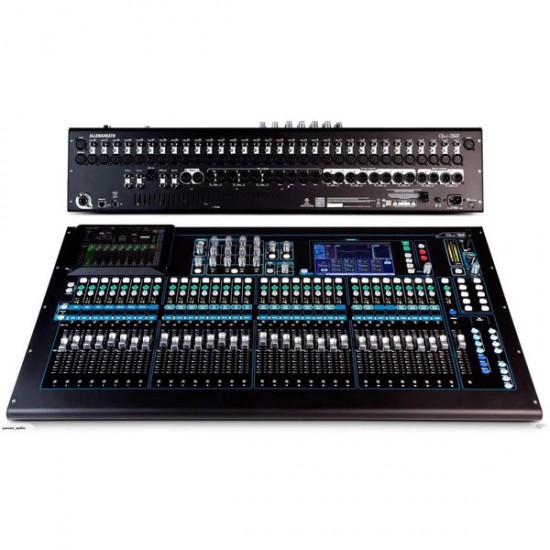

Whether you're recording in the studio or mixing front of house, your mixer is the core of your operation. If it fights you, your work suffers. Many digital consoles are inscrutable on the surface, forcing you to descend into menu purgatory just to perform a simple function. The Allen & Heath Qu-32 Chrome Edition is designed with a clean, logical layout, so you can get to what you need, fast. Featuring audiophile sound quality, touchscreen control, 32 AnalogiQ preamps integrated with DSP, instant recall, 33 motorized faders, high-efficiency ARM core processing, studio-grade effects, an integrated multitrack USB recorder, and truckloads more, the Allen & Heath Qu-32 Chrome Edition will drastically improve both your workflow and your end product

Qu-32 Chrome Edition adds more monitor mixes, a spectrogram, and an Automatic Mic Mixer

The Allen & Heath Qu-32 Chrome Edition expands on the already impressive Qu-32 mixer, while also adding high-contrast metallic-finished controls. A spectrogram display has been added to help you find feedback and problem frequencies fast. More monitor mixes are now available. And the Qu-32 Chrome Edition's Automatic Mic Mixer mode automatically balances up to 16 microphone inputs, perfect for conferences, panel talks, and TV shows. The Qu-32 is ideal for novices and volunteers that may not be comfortable mixing a large number of mics, and it's also great for pros who have more important things to do than ride faders.

FEATURES

• 32 AnalogiQ total-recall preamps integrated with DSP for optimum transparency and gain accuracy
• Ergonomic layout and workflow is comfortable, fluid, and intuitive
• Color touchscreen and dedicated data encoder give you quick and easy access to all settings
• Key processing tools are presented clearly on the SuperStrip, with 1 function per physical control
• 33 automated, motorized ALPS faders (32 arranged over two layers) speed up and enhance your mixing
• 4 groups give you subgrouping flexibility to LR for level masters and/or processing
• Instant recall lets you save and recall scenes (snapshots) at the press of a button
• Onboard studio-grade dynamics and FX algorithms derived A&H's iLive pro touring series
• Built-in interface streams multitrack audio to/from your Mac (OSX class-compliant)
• Plug-and-play with any DAW supporting Core Audio, including Logic, Cubase, Reaper, and Pro Tools
• Qu-Drive delivers 18 channels of 24-bit/48kHz recording/playback to/from your USB hard drive
• 5 dedicated cores of high-efficiency ARM processing provide state-of-the-art processing
• Optional Qu-Pad app frees you to tweak monitors and PA from your iPad, onstage or around the venue
• Fully compatible with A&H's ME Personal Mixing System
• dSNAKE port lets you connect to a remote AR2412 or AR84 Stagebox via Cat 5e digital snake
• Matrix adds 2 further stereo outputs equipped with full processing to the console's extensive I/O
• 18-gauge, cold-rolled Zintec steel frame delivers strength, rigidity, and distinctive looks

SPECIFICATIONS

• Type:Digital
• Channels:32 Mono, 3 Stereo
• Inputs - Mic Preamps:32 x XLR
• Phantom Power:32
• Inputs - Line:32 x 1/4"
• Inputs - Other:4 x 1/4" (2 stereo in), 1 x 1/8" TRS (stereo in)
• Outputs - Main:2 x XLR (left, right), 2 x 1/4" (2 track out), 2 x 1/4" (alt out)
• Outputs - Other:4 x XLR (mono mix outs), 3 x XLR pairs (stereo mix outs), 4 x XLR pairs (stereo group outs), 2 x XLR pairs (stereo matrix outs)
• Outputs - Digital:1 x Ethernet dSnake, 1 x XLR AES, 1 x USB Type A
• Busses/Groups:16-bus
• Talkback:1 x XLR
• Data I/O:1 x Ethernet TCP/IP
• Headphones:1 x 1/4" TRS
• USB:1 x Type B, 1 x Type A
• Computer Connectivity:USB (32 x 30), Ethernet
• Faders:32 x 100mm channels, 1 x 100mm master
• EQ Bands:Parametric EQ, 28-band graphic EQ
• Effects:Reverb, delay, chorus, phaser, flanger (4 x stereo FX returns)
• DAW Control:MIDI DAW control driver for Mac (HUI, Mackie Control)
• Height:7.32" (desktop position)
• Depth:19.52" (desktop position)
• Width:33.42"
• Weight:53 lbs.
